SKC-PTM-50/70/100/200

Giá sản phẩm:

Liên hệ hotline.

Danh mục: , Từ khóa:

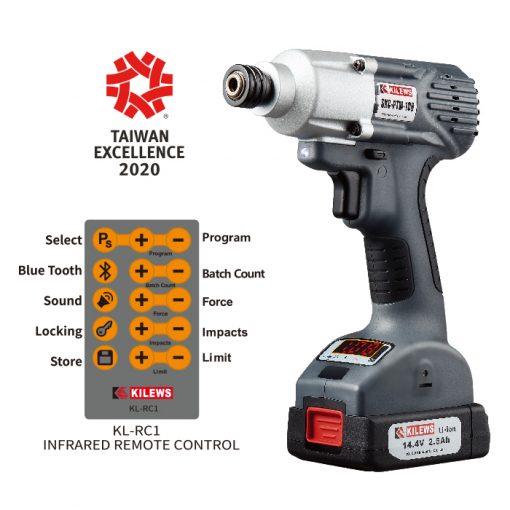

Cordless Battery Screwdriver

SMART MULTI STAGE REMOTE CONTROL

BRUSHLESS INDUSTRIAL IMPACT WRENCH

SKC-PTM-50/70/100/200

Product Features

  • OK & NG indicator – Prevent cross head and stripped screw to secure fastening quality.
    •Program – Max. 5 programs to use in a sequence.
    •Counter – Counter reminds user for no. of remaining untighten screw.
    •Low battery alert – To judge best timing to change battery.
    •Prohibit setting configuration – When activated, user cannot change settings without remote control. This is to avoid any user to change tool settings intentionally.
    •Low voltage compensation, stable power output to ensure torque output stability.

High precision

  • Set PTM-50 at 80% output using M12 bolt (socket size: 19mm), KTM-IWT400 tester measured PTM-50 torque accuracy is ±8~10%.
  • Set PTM-70 at 80% output using M16 bolt (socket size: 24mm),KTM-IWT400 tester measured PTM-70 torque accuracy is ±8~10%.
  • Set PTM-100 at 80% output using M16 bolt (socket size: 24mm),KTM-IWT400 tester measured PTM-100 torque accuracy is ±8~10%.
  • Set PTM-200 at 80% output using M20 bolt (socket size: 30mm),KTM-IWT400 TESTER MEASURED PTM-200 torque accuracy is ±8~10%.

※Socket weight, driver handling, bolt property class, bolt size may all affect torque output.



Specifications
Model SKC-PTM-50 SKC-PTM-70 SKC-PTM-100 SKC-PTM-200
Input Voltage 14.4V 14.4V 14.4V 14.4V
Free Speed(r.p.m)+/-10% 0 ~ 1900 0 ~ 2600 0 ~ 2000 0 ~ 1700
B.P.M 0 ~ 2500 0 ~ 3400 0 ~ 2600 0 ~ 2100
Torque(N.m) 8 ~ 50 20 ~ 70 20 ~ 100 25 ~ 200
Bolt Size (Class 12.9) M6、M8、M10、

M12

 M8、M10、M12、M14 M10、M12、M14、M16 M12、M14、M16、M20
Torque Tester KTM-IWT50、KTM-IWT400 KTM-IWT400 KTM-IWT400 KTM-IWT400
Torque Torque(M6) 3-20N.m Torque(M8) 8-30N.m Torque(M10) 8-40N.m Torque(M12) 15-110N.m
Torque(M8) 3-20N.m Torque(M10) 8-40N.m Torque(M12) 20-70N.m Torque(M14) 25-120N.m
Torque(M10) 5-30N.m Torque(M12) 20-60N.m Torque(M14) 20-90N.m Torque(M16) 25-140N.m
Torque(M12) 12-50N.m Torque(M14) 25-70N.m Torque(M16) 25-100N.m Torque(M20) 25-200N.m
Bit Size
Weight(kg) 0.98 (Without Battery) 1 (Without Battery) 1.02 (Without Battery) 1.5 (Without Battery)
Size(mm) 174X202(LXH Without Battery) 219X220(LXH Without Battery)
Applicable Battery SKC-LB1425 SKC-LB1425 SKC-LB1425 SKC-LB1425
Applicable Charge Station SKC-P70W SKC-P70W SKC-P70W SKC-P70W
Optional Accessories KL-RC1
